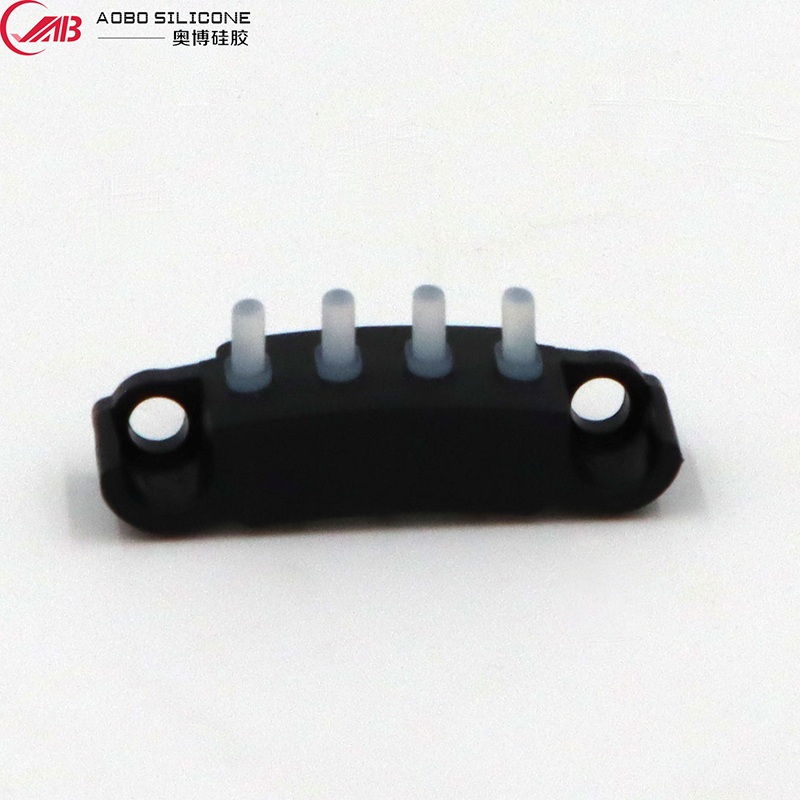

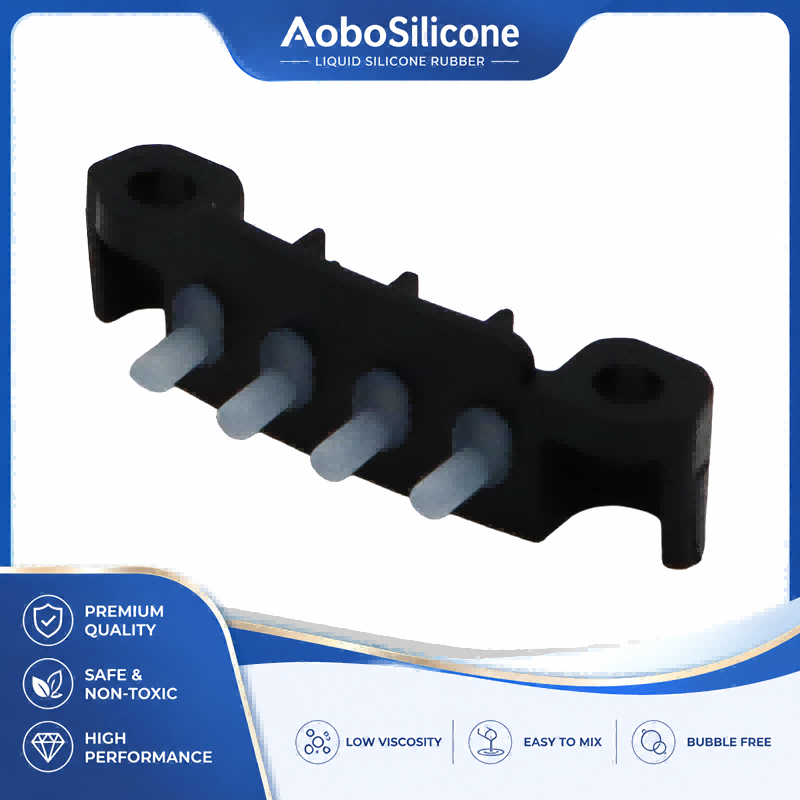

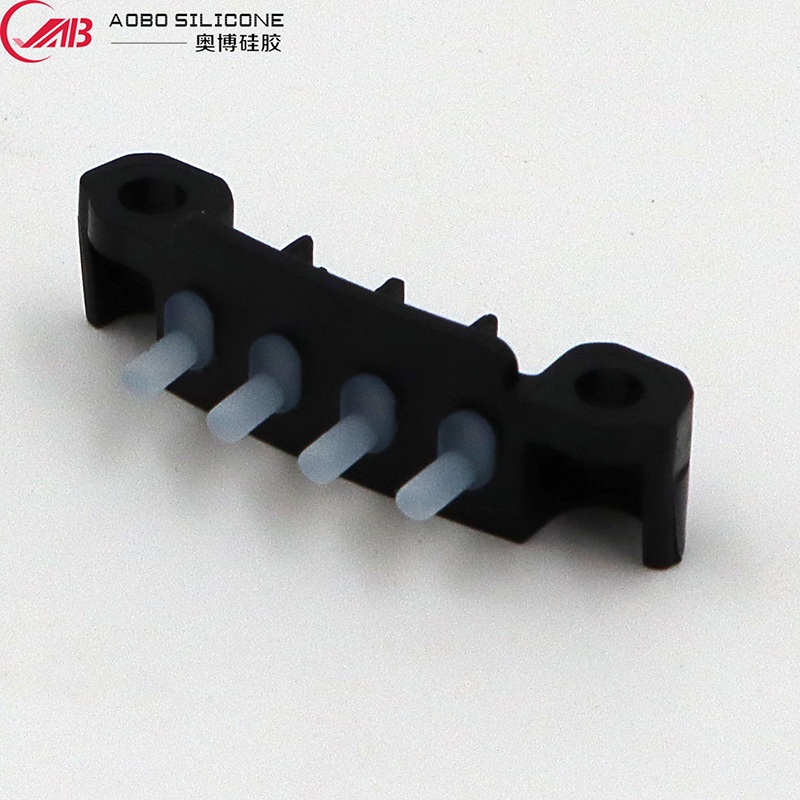

LSR Overmolded Keypad Assembly with Plastic Bracket

The LSR overmolded keypad assembly with plastic bracket is a composite human-machine interaction component. It uses a rigid plastic bracket as the internal support skeleton, and forms the keypad functional area integrally on the bracket through liquid silicone injection overmolding process, finally creating an integrated keypad assembly with both support rigidity and pressing elasticity.

Its core function is to provide accurate pressing input interfaces for various electronic devices, while realizing sealing protection and optimized operation feel for the keypad area. It targets three common pain points in the industry:

● High failure rate of split assembly: Traditional split solutions of "plastic bracket + independent silicone keypad" have splicing gaps, allowing dust and liquid to penetrate into the device and cause malfunctions. The integrated overmolded structure eliminates splicing gaps and greatly improves protection performance.
● Feel degradation after long-term use: Ordinary silicone keypads lack rigid support, and are prone to deformation, weak rebound and inconsistent feel after long-term pressing. The plastic bracket provides stable limit control, ensuring precise keystroke travel and consistent feel over time.
● High assembly cost: Multi-component solutions require separate procurement and step-by-step assembly, driving up material management and labor costs. The integrated assembly can be directly installed into the whole device, reducing assembly procedures and production management costs.

Core Advantages & Selling Points

We polish the product from four dimensions — material, process, service life and cost — to deliver quantifiable practical value to customers:

1. High-grade LSR material, compliant for multi-scenario applications
Technical features: Made of food-grade high-purity liquid silicone raw material, with Shore hardness ranging from 30° to 70°, working temperature from -40℃ to 180℃, and certified by RoHS, FDA, LFGB and other environmental compliance standards.
Customer benefit: The product adapts to harsh scenarios such as outdoor high/low temperature, medical hygiene and mother-baby contact, saving customers extra material certification costs and directly supporting the compliant launch of mid-to-high end products.

2. One-piece overmolding process, high-level sealing protection
Technical features: Adopting LSR injection overmolding process, the adhesion strength between silicone layer and plastic bracket reaches ≥5N/mm with no splicing gaps. The standard model achieves IP65 protection rating, and can be upgraded to IP67 with customized optimization.
Customer benefit: The keypad area realizes effective water and dust resistance, blocking liquid, oil and dust from entering the device, greatly reducing after-sales repair rate of end products and extending the service life of the whole machine.

3. High-precision molding control, consistent feel in mass production
Technical features: Mold machining accuracy reaches ±0.02mm, keystroke travel tolerance is controlled within ±0.05mm, and single-key pressing force deviation is ≤10g.
Customer benefit: Mass-delivered products feature uniform feel and stable travel, without key jamming, offset pressing or feel difference. It improves end-user operation experience and reduces defective rate at customers' finished product end.

4. Integrated design, lower comprehensive procurement cost
Technical features: A single assembly integrates support structure and keypad functions, replacing the traditional mode of split procurement and assembly of multiple components.
Customer benefit: It reduces procurement SKUs, warehousing and management costs; whole-device assembly procedures are cut by more than 30%, saving labor assembly costs. It also avoids tolerance accumulation of multiple components and improves production yield of finished devices.

Detailed Technical Specifications

The following are standard baseline parameters of the product. Core indicators can be customized and adjusted according to customer requirements.

The above are conventional parameter benchmarks. For special application requirements of the LSR overmolded keypad assembly with plastic bracket, we can provide exclusive material formulas and structural optimization solutions.

Wide-Ranging Application Scenarios

With its sealing protection, stable feel and weather resistance, the product covers human-machine interaction keypad scenarios in multiple industries and adapts to differentiated demands in different fields:

1. Consumer Electronics Industry
Sub-scenarios: Smart door lock keypads, portable Bluetooth speaker keypads, action camera function keys, outdoor power bank keypads, remote control keypads
Application value: The integrated sealing structure improves water and dust resistance of products; the delicate silicone touch optimizes user operation experience. It can flexibly match the appearance design of various products and help build differentiated competitiveness.

2. Industrial Control Field
Sub-scenarios: Industrial control terminal panel keys, testing instrument operation keys, outdoor surveying equipment keys, automation equipment control keys
Application value: Resistant to oil, aging and wide temperature range, it operates stably for a long time in complex industrial environments. Precise keystroke travel ensures reliable industrial operation input and reduces equipment operation, maintenance and replacement costs.

3. Medical & Healthcare Field
Sub-scenarios: Home physiotherapy instrument keypads, portable detector keypads, nursing equipment function keys, dental medical equipment keypads
Application value: Medical-grade silicone material is safe and non-toxic, resistant to repeated wiping with alcohol and disinfectant. The sealed structure prevents liquid medicine and stains from penetrating into the device, meeting the hygiene and safety standards of medical devices.

4. Automotive Electronics Field
Sub-scenarios: Vehicle central control function keys, steering wheel auxiliary keys, car charger keypads, automotive interior control keys
Application value: Resistant to high and low temperature cycles and UV aging, it does not yellow or deform after long-term use. The stable rebound feel is suitable for blind operation in vehicles, and can meet the performance requirements of automotive-grade products.

With stable performance and flexible customization capability, the LSR overmolded keypad assembly with plastic bracket has become a preferred solution for human-machine interaction components in many industries.

Certifications & Quality Control

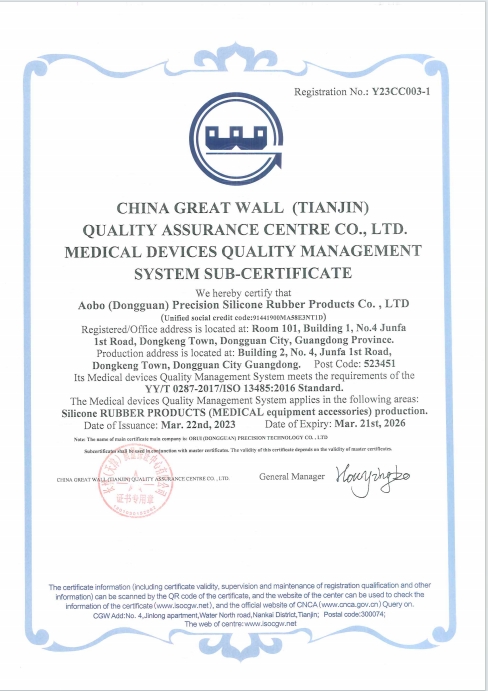

Authoritative Certifications

Our products and production system have passed a number of domestic and foreign authoritative certifications, meeting compliance access requirements of different regions and industries:

● Material environmental certifications: RoHS, REACH, FDA, LFGB
● Quality management system: ISO 9001:2015 Quality Management System Certification
● Performance test reports: Third-party test reports on keypad lifespan, high & low temperature cycle, waterproof rating and material composition are available
● Special certification support: We can cooperate with customers to complete special testing and certification for medical grade, automotive grade, flame retardant grade, etc.

Full-Process Quality Control System

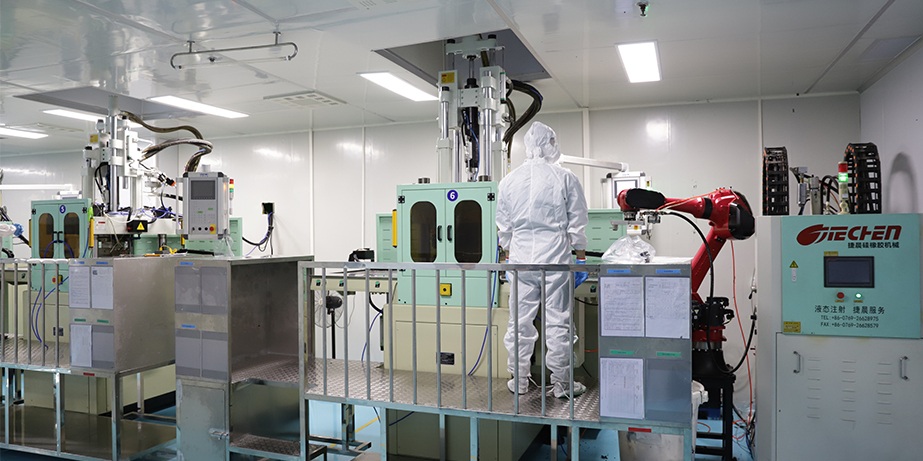

We have established a full-link quality control system from raw material incoming to finished product delivery to ensure stable quality of each batch:

1. Incoming raw material inspection: Each batch of raw materials is checked against material certificates and environmental reports, with core physical indicators such as hardness and viscosity sampled and tested. Unqualified raw materials are rejected directly to eliminate hidden quality risks from the source.
2. First article confirmation for molds: First article sampling is conducted for each new mold and after mold repair, with full-dimensional inspection of dimensional accuracy, adhesion strength, pressing feel and other indicators. Mass production starts only after qualification is confirmed.
3. In-process patrol inspection: Sampling inspection is conducted every 2 hours during production, covering key items such as appearance, size, feel and bonding strength. Process parameters are adjusted in real time to ensure consistency of mass products.
4. Finished product full inspection before shipment: 100% appearance inspection is performed on all products before shipment, and performance parameters are sampled according to AQL standards. Defective products are directly eliminated to ensure qualified delivery yield.

Differentiated Competitive Advantages | Why Choose Aobo Silicone

We build core advantages from two dimensions: product performance and factory service, and objectively compare with the industry average to create higher value for customers with hard indicators.

Product-Side Advantages

1. Higher material purity, stronger weather resistance
The industry generally uses ordinary industrial-grade LSR with high impurity content, which is prone to yellowing and aging after long-term use. We adopt high-purity food-grade silicone raw material by default, with lower impurity content and over 30% better aging resistance than the industry average, which can directly meet the needs of mid-to-high end products.

2. Higher molding precision, better feel consistency
The industry generally has a mold machining accuracy of ±0.05mm, with large keystroke travel tolerance and obvious feel difference in mass products. We use high-precision mold processing equipment, with mold accuracy up to ±0.02mm and keystroke travel tolerance controlled within ±0.05mm. The feel uniformity of mass products is much higher than the industry average.

3. Stronger overmolding adhesion, longer service life
The industry generally has an overmolding adhesion strength of ≥3N/mm, which is prone to degumming and delamination after long-term use. Through special surface treatment process and optimized molding parameters, our adhesion strength can reach ≥5N/mm. No delamination occurs after one million press cycles and high-low temperature cycle tests, and the product service life is increased by 50%.

Factory-Side Advantages

1. Shorter delivery cycle, faster response
The general delivery cycle for customized orders in the industry is 25-30 days. We have our own mold room and fully automated production lines, and regular customized orders can be delivered within 15-20 days. We also provide urgent order expedited channels to match customers' new product launch and replenishment rhythm.

2. More flexible MOQ, adapting to diverse needs
The general MOQ in the industry is 5,000-10,000 pieces, with a high threshold. We support small-batch trial production starting from 1,000 pieces, adapting to the trial order needs of cross-border sellers and start-up brands, and effectively reducing customers' inventory and trial-and-error pressure.

3. More comprehensive customization services, one-stop implementation
Most manufacturers in the industry focus on simple mass production with weak design support capability. We provide full-chain services from structural design, mold development, sample adjustment to mass production, and can simultaneously complete supporting processing such as silk screen printing, laser engraving and conductive carbon particles, meeting customers' customization needs in one stop.

For customized demands of the LSR overmolded keypad assembly with plastic bracket, we provide full-process exclusive docking services from solution evaluation to mass delivery.

Real Customer Application Feedback

The following are mass production feedback from cooperative customers, all from real mass production projects, for your procurement decision reference:

1. European Smart Home Brand · Smart Door Lock Project
"Our outdoor smart door locks had long been troubled by water ingress in keypads and high repair rate. After switching to Aobo's overmolded keypad solution, the overall protection rating of the device has been upgraded to IP67, and the keypad repair rate in outdoor scenarios has dropped by 65%. Meanwhile, the integrated assembly has improved our assembly efficiency by 30%, greatly reducing labor costs. It took only 18 days from structural optimization to mass delivery, fully matching our new product launch schedule." ------ Procurement Project Manager

2. Domestic Industrial Testing Equipment Manufacturer · Outdoor Detector Project
"Our equipment needs to be used in high-temperature, high-humidity and dusty industrial sites. The previous split keypads often had key jamming and poor contact problems. After cooperation, Aobo optimized the silicone formula and bracket structure for our application scenarios. The product shows no obvious feel attenuation after 1 million press cycles, and all high & low temperature cycle tests are qualified. At present, all our outdoor equipment series have switched to this assembly, and the market reputation of our equipment has improved significantly." ------ R&D Department Manager

Sample & Testing Support

To reduce customers' early trial-and-error costs, we provide comprehensive sample and testing support services to facilitate customers' pre-production testing and verification:

1. Sample Types

● General reference samples: Standard samples from existing stock, available for evaluating material feel and overmolding process effect
● Customized samples: Exclusive samples made by opening molds according to customer drawings/requirements, available for structural adaptation and performance testing

2. Sample Lead Time

● General reference samples: Shipped within 1-3 working days
● Customized mold opening & sampling: Sample production completed in 7-10 working days

3. Sample Fee Policy

● General reference samples: Provided free of charge, customers only need to bear international express freight
● Customized sampling: Reasonable mold fee and sample processing fee will be charged, which can be fully refunded when the subsequent bulk order reaches the agreed quantity

4. Test Report Application

● Electronic versions of conventional material environmental reports and basic performance test reports can be provided free of charge along with samples
● If third-party special test reports are required, you can apply in advance. We will assist in completing the testing and issuing corresponding reports, and relevant fees will be calculated separately according to the test items

Packaging & Logistics Delivery

Packaging Solutions

● Standard packaging: Inner layer is packed in anti-static PE bags or fixed by blister trays to avoid scratches and extrusion deformation; outer layer is packed with thickened five-layer corrugated cartons, with paper corner protectors installed at the edges and buffer foam filled inside the box, fully resisting collision and extrusion during transportation.
● Customized packaging: Support customer-specified packaging methods. Neutral packaging and custom-printed customer brand logos and shipping marks are available to meet the warehousing and sales needs of brands and cross-border sellers.
● Outer box identification: Product model, quantity, batch number, gross weight, net weight and other information are clearly marked for customers to quickly check and put into storage.

Logistics & Delivery

● Bulk production lead time: 15-20 days for regular bulk orders. The specific cycle depends on order quantity and customization difficulty, and expedited processing can be negotiated for urgent orders.
● Shipping port: Default shipment from Yantian Port / Shekou Port, Shenzhen. Other domestic ports can also be designated according to customer requirements.
● Logistics methods: Support sea freight, air freight, international express and other logistics methods. We can cooperate with customers' designated freight forwarders, or provide door-to-door one-stop logistics solutions.

After-Sales Warranty & Service Commitments

We provide comprehensive after-sales guarantee and supporting services to completely eliminate your procurement concerns:

1. Quality Warranty Commitment
The product comes with a 12-month quality warranty from the date of delivery. During the warranty period, we take full responsibility for non-artificial quality problems (such as degumming delamination, size mismatch, performance non-compliance, etc.).

2. Quality Issue Resolution Process

● If quality abnormalities are found after receiving the goods, customers can feedback within 7 working days and provide corresponding photos, test data or defective samples
● We will complete verification within 24 hours and provide solutions, including free replenishment, return & replacement or rework. The resulting logistics and production costs shall be borne by us

3. Full-Cycle Supporting Services

● Exclusive business docking: Each customer is assigned an exclusive business specialist to follow up the order progress throughout the process and respond to procurement needs in a timely manner
● Technical support service: Professional engineering team provides technical support such as structural optimization, material selection and process adaptation, assisting customers in solving various problems in product application
● Visual order follow-up: Regular progress feedback during production, complete logistics information provided after shipment, with full transparency and traceability

Frequently Asked Questions (FAQ)

Will the plastic bracket and silicone layer delaminate after long-term use?

No. We adopt special plastic surface treatment technology and optimized LSR overmolding parameters, with adhesion strength up to 5N/mm or above. No delamination or peeling occurs after one million press cycles and high-low temperature cycle tests, and it can guarantee the same service life as the device under normal use.

Can this overmolded keypad achieve laser engraving with light transmission effect?

Yes. We support laser engraving light transmission and silk screen printed characters/patterns on silicone keypads. The silicone color and light transmission area can be adjusted according to customers' backlight requirements, adapting to device keypad scenarios with indicator lights and backlights.

Can the plastic material of the bracket be specified with a fire rating?

Yes. The plastic bracket adopts high-toughness PC/ABS by default, and can be replaced with flame-retardant PC, PA66 and other engineering plastics according to requirements, meeting UL94-V0 and other flame retardant grades, suitable for fire protection, industrial control and other scenarios with fire protection requirements.

What materials do customers need to provide for customizing this assembly?

For conventional customization, customers need to provide 2D/3D product drawings, material hardness requirements, color and surface process requirements, expected dosage and other information. If there is no complete drawing, samples or functional requirement descriptions can also be provided, and our engineering team can assist in structural design.

Is the quality control standard for small-batch trial orders the same as that for bulk orders?

Yes. Regardless of order quantity, we implement the same full-process quality control standard. Full appearance inspection and performance sampling inspection are completed before shipment. Full inspection service can also be provided for small-batch orders according to customer requirements to ensure uniform delivery quality.

Can the product withstand repeated wiping with alcohol and disinfectant?

Conventional food-grade LSR can withstand daily alcohol wiping and disinfection. For medical scenarios requiring frequent disinfection, we can customize a special silicone formula resistant to chemical corrosion, which will not whiten, deform or crack after long-term wiping.
