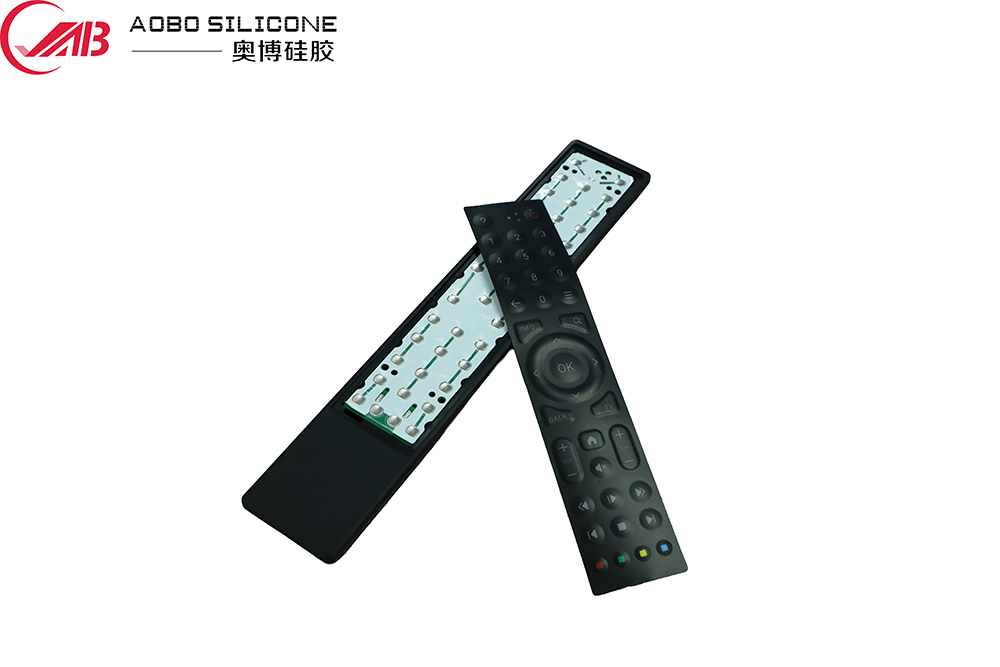

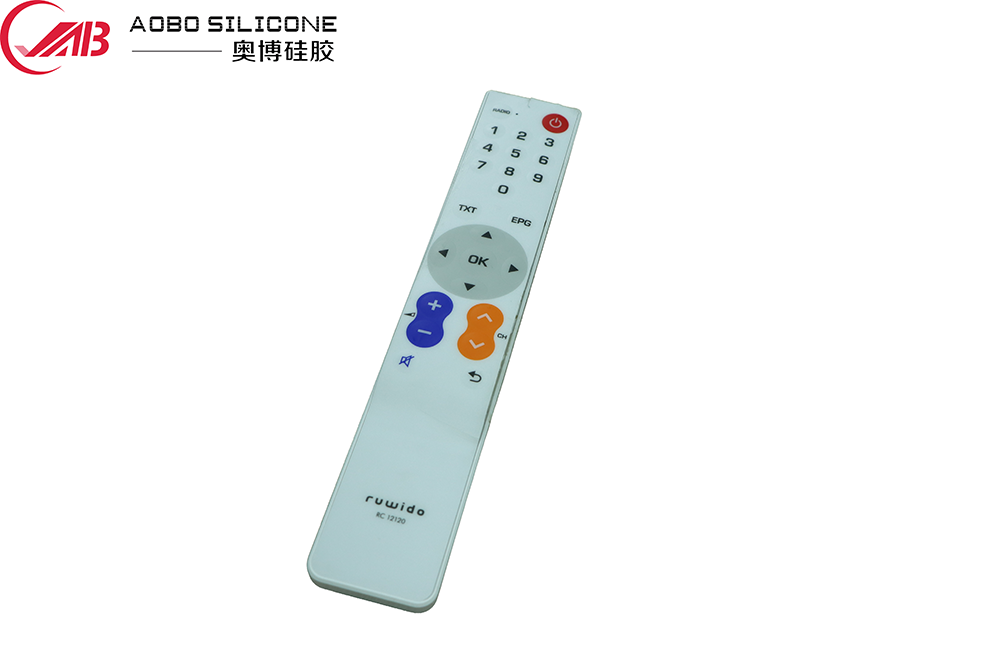

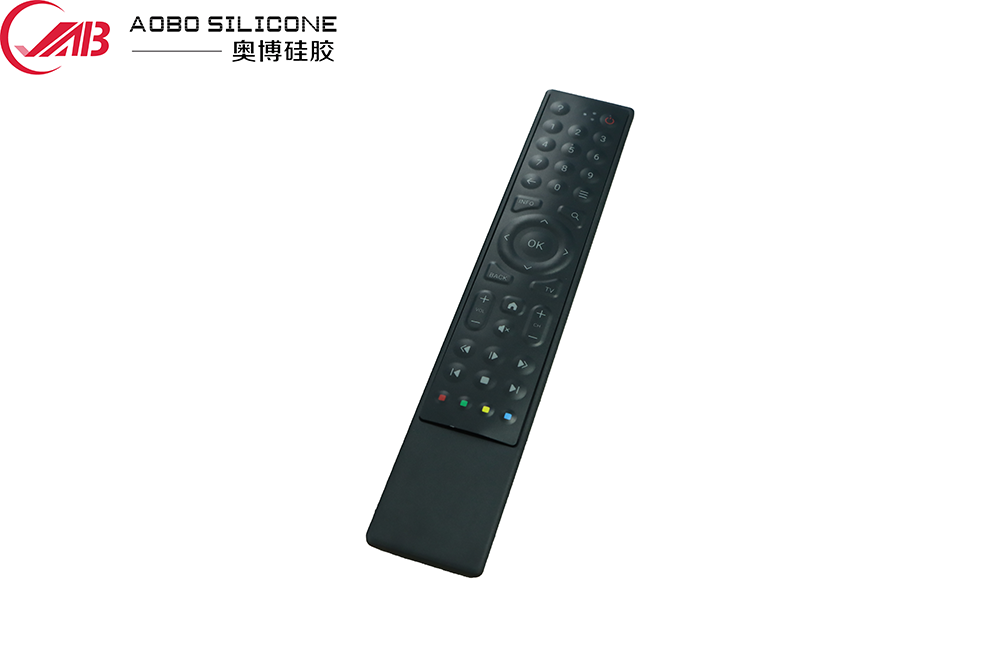

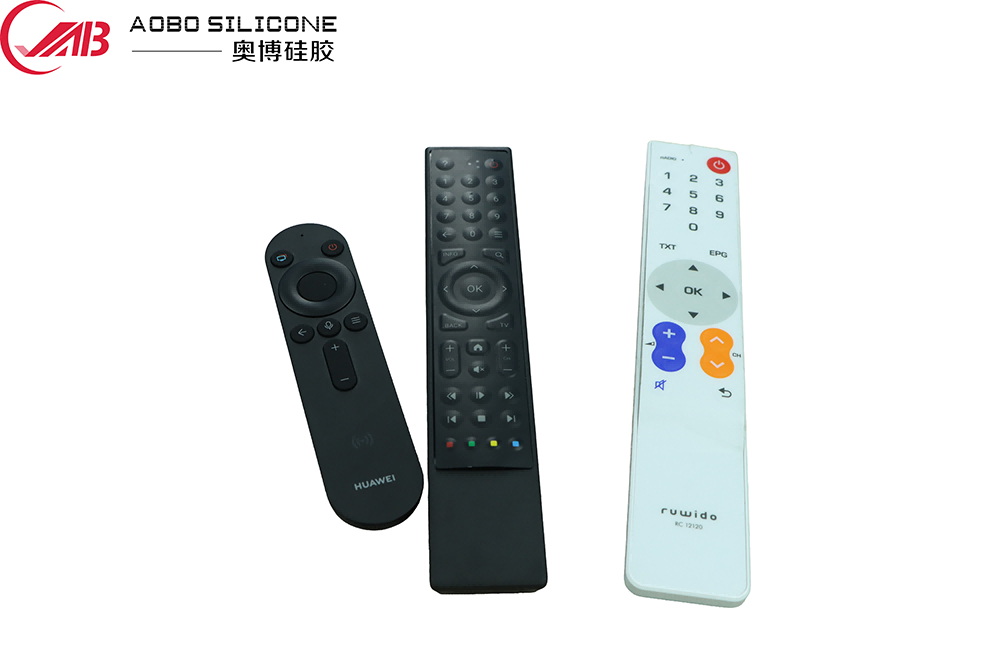

Silicone Remote Control Keypad

A silicone remote control keypad is an integrated electronic control component made of highly elastic silicone rubber, embedded with conductive carbon pills or metal contacts on the back side. It serves as the core functional part for human-machine interaction on remote control devices. When pressed, the silicone deforms elastically, bringing the rear conductive layer into contact with PCB circuit board contacts to form a current path and trigger the corresponding function command; when released, the silicone rebounds instantly to break the circuit, completing a full operation cycle.

This product not only performs signal conduction, but also delivers multiple benefits including waterproof and dustproof protection, shock absorption, and tactile feedback. The one-piece integrated base effectively blocks water vapor and dust from invading internal circuits and protects electronic components; the soft silicone material buffers pressing force and reduces finger fatigue from long-term operation; the precisely designed key stroke and actuation force provide clear operation feedback and enhance overall user experience.

Parameter Category	Test Item	Specification Range
Material Basics	Base Material	Fumed / Precipitated Silicone Rubber (Food-grade / Industrial-grade optional)
	Hardness	20–80 Shore A (30–40 Shore A as standard)
	Material Certification	RoHS / REACH / FDA / LFGB (optional)
Physical Properties	Key Stroke	0.3–0.8 mm (customizable)
	Actuation Force	120–200 gf (adjustable upon request)
	Rebound Time	≤ 0.1 s
	Mechanical Service Life	500,000 – 5,000,000 cycles (varies by material grade)
Electrical Performance	Contact Resistance	≤ 100 Ω (conductive carbon pill type)
	Insulation Resistance	≥ 10¹² Ω
	Withstand Voltage	≥ 2 kV AC / 1 min
Environmental Adaptability	Operating Temperature	-40 ℃ to 180 ℃
	Storage Temperature	-50 ℃ to 200 ℃
	Protection Rating	IP65 (Standard Model) / IP67 (Enhanced Sealing Model)
Process & Dimension	Dimensional Tolerance	± 0.02 mm (critical fitting positions)
	Conduction Type	Conductive Carbon Pills / Conductive Ink / Metal Domes / Gold-plated Contacts
	Surface Treatment	Silk Screen Printing / Laser Engraving / Epoxy Dispensing / PU Coating / Anti-slip Texture

Advantages of Aobo Silicone Keypads

The silicone remote control keypads produced by Aobo Silicone lead the industry in material formulation, process precision and performance, and are widely recognized by customers for stable quality and high cost-effectiveness. Core advantages are as follows:

1. Ultra-long Service Life & Excellent Weather Resistance

● Made of high-quality fumed silicone raw material, with a pressing life of over 5 million cycles, resistant to collapse and deformation under long-term high-frequency use
● Temperature resistance ranges from -40℃ to 180℃, with resilience attenuation ≤5% under extreme temperature environments, adapting to regional temperature differences and outdoor scenarios
● Formulated with anti-UV and anti-aging additives, resistant to cracking and yellowing under outdoor exposure, with service life 3 times longer than ordinary products

2. Stable Conductive Performance & Precise Reliable Actuation

● Embedded with high-purity conductive carbon pills on the back, with contact resistance ≤100Ω, ensuring sensitive and stable signal transmission without delay or failure
● Precision mold positioning ensures accurate alignment between conductive contacts and PCB boards, with position tolerance of ±0.02mm and high batch consistency
● The conductive layer and silicone matrix are formed via one-piece vulcanization, with firm bonding and no peeling, eliminating poor contact issues after long-term pressing

3. Comfortable Soft Tactile Feel & Superior Operation Experience

● Scientifically designed key stroke of 0.3-0.8mm and actuation force of 120-200gf, delivering clear pressing feedback with effortless operation
● Surface can be treated with matte, frosted or anti-slip texture, resistant to fingerprint residue with comfortable grip and pressing feel
● Silent pressing design, no crisp impact sound like plastic keypads, suitable for quiet environments such as homes and offices

4. Waterproof Dustproof Sealing & Strong Environmental Adaptability

● One-piece integrated structure without splicing gaps, achieving IP65 level dustproof and waterproof protection
● High-density silicone material with a pore-free surface, oil stains and dust only adhere to the surface for easy wiping and cleaning
● Resistant to sweat and alcohol corrosion, daily hand sweat and detergent contact will not cause material degradation or character peeling

5. Rich Appearance Processes & High Customization Flexibility

● Support multiple character processes including silk screen printing, laser engraving and epoxy dispensing, with clear wear-resistant characters that do not fade after long-term use
● Multi-color one-piece molding available, different function keys can be distinguished by colors to improve product recognition
● Surface can be treated with PU coating or epoxy coating to further enhance wear resistance and chemical corrosion resistance

Test Item	Test Condition	Standard Requirement	Aobo Actual Test Result	Applicable Standard
Key Press Life Test	Normal temperature and pressure, 120 gf vertical pressing, frequency 60 cycles/min	≥ 500,000 cycles without functional failure	≥ 5,000,000 cycles without collapse or poor conduction	GB/T 2423 / SJ/T 10464
Temperature Cycle Test	-40 ℃ (30min) ↔ 180 ℃ (30min), 50 cycles in total	Rebound rate attenuation ≤ 15%, no cracking	Rebound rate attenuation ≤ 5%, no abnormal appearance	GB/T 2423.22
Damp Heat Aging Test	85 ℃ / 85% RH, sustained for 168 h	Contact resistance change ≤ 30%, no obvious yellowing	Contact resistance change ≤ 10%, no yellowing	GB/T 2423.3
UV Weathering Aging Test	UVB 313 nm, 0.89 W/m², 50 ℃, sustained for 72 h	No cracking or chalking, color difference ΔE ≤ 3	No cracking or chalking, color difference ΔE ≤ 1.5	ASTM G154 / GB/T 16422.3
Alcohol Rub Resistance Test	99.7% anhydrous ethanol, 500 g weight, 500 reciprocating rubs	No character peeling, no substrate swelling	Characters remain intact after 1000 rubs, substrate stays in good condition	GB/T 2828.5
Salt Spray Corrosion Test	5% NaCl solution, 35 ℃, continuous spraying for 48 h	No rust on conductive contacts, no substrate corrosion	No rust or abnormal conduction after 96 h of testing	GB/T 2423.17
Dustproof Sealing Test	Talcum powder chamber method, 8 h dusting + 2 h standing	IP6X: No dust intrusion into the interior	No dust inside, conduction function remains normal	IEC 60529 / GB/T 4208

Product Qualifications & Quality Assurance

Aobo Silicone has established a complete quality management system and quality control process, with strict inspection from raw material incoming to finished product delivery, ensuring every batch of products meets high-standard quality requirements.

1. Quality Management System

● The factory has passed ISO9001:2015 quality management system certification, with standardized operations throughout the whole process
● Four-level quality inspection mechanism (IQC, IPQC, FQC, OQC) is established, with dedicated inspectors for each process
● Full traceability of production process, with complete archives of raw material batches, production parameters and quality inspection records

2. Material Safety Certification

● All raw materials have passed RoHS and REACH environmental certifications, free of heavy metals, phthalates and other harmful substances
● Food-grade silicone raw material option is available, which has passed FDA and LFGB food contact safety standard tests
● Conductive materials comply with EU environmental protection requirements, halogen-free and non-toxic, meeting export standards for European and American markets

3. Industry Implementation Standards

● Produced in strict accordance with national silicone product performance standards such as GB/T 528 and GB/T 529
● Conductive performance complies with SJ/T 10464 general technical specification for electronic conductive rubber
● Environmental reliability tests follow GB/T 2423 series standards, passing high and low temperature cycle, damp heat aging and other tests

Quality Commitment: All products undergo 100% appearance full inspection and conduction performance sampling before delivery, with the defect rate strictly controlled within 0.3%. If customers receive products with batch quality problems, we promise to respond within 24 hours and provide solutions within 48 hours. Return, replacement or rework services are available to fully protect customer rights and interests.

Practical Application Scenarios

As a basic human-machine interaction component, silicone remote control keypads are applied in remote control scenarios across various industries, providing targeted solutions for pain points in different usage environments.

1. Industry Pain Points

● Home appliance scenario: Ordinary plastic keypads have stiff tactile feel, prone to wear and jamming after long-term use. Water vapor in kitchen and bathroom environments easily causes contact oxidation failure, and printed characters easily peel off due to hand sweat friction
● Automotive electronics scenario: Large temperature difference and strong UV radiation inside vehicles cause ordinary keypads to age, harden and crack easily. Bumpy road conditions easily lead to accidental touch or poor contact, with high requirements for dimensional accuracy and installation stability
● Industrial control scenario: Heavy dust, oil stains and moisture in workshops easily accumulate in keypad gaps and cause jamming. Short service life under high-frequency operation leads to high maintenance costs, and tactile feedback is unclear when operating with gloves
● Medical equipment scenario: Frequent disinfection and wiping are required, ordinary keypads are not resistant to alcohol and disinfectant corrosion, with high requirements for material cleanliness and antibacterial property, and operation requires anti-accidental touch with clear feedback

2. Supporting Solutions

● Home appliance solution: Adopt 30-40 Shore A soft silicone to improve pressing comfort, silk print wear-resistant characters on the surface, strengthen sealing with integrated base, and upgrade to IP67 waterproof rating for kitchen and bathroom appliances
● Automotive solution: Select special silicone formula with high and low temperature resistance and UV resistance, optimize key side wall gap and rebound structure to ensure stable actuation under bumpy road conditions, with dimensional accuracy adapted to automated assembly
● Industrial control solution: Integrated fully enclosed structure eliminates dust intrusion, anti-slip texture on the surface facilitates gloved operation, thickened conductive layer improves wear resistance life, and supports integrated backlight light guide column design
● Medical solution: Adopt medical-grade silicone substrate with antibacterial ingredients, treat the surface with disinfection-resistant coating, increase actuation force to prevent accidental touch, and withstand repeated wiping with alcohol and iodophor

Applicable Fields

With outstanding comprehensive performance, the silicone remote control keypad has become a standard component for remote control devices in multiple industries, fully meeting core requirements for operational reliability, environmental adaptability and user experience.

In the home appliance sector, it is compatible with various household remote controls for TVs, air conditioners, set-top boxes, projectors and range hoods, meeting durability and comfortable tactile requirements for daily high-frequency home use; in the automotive electronics sector, it is applied to car keys, car infotainment systems, air conditioning controls, driving recorder remote controls, etc., withstanding extreme temperature changes and UV radiation inside vehicles to ensure stable driving operation; in the industrial control sector, it supports overhead crane remote controls, machine tool controls, instruments and meters, drone remote controls and other equipment, adapting to harsh working conditions and reducing maintenance costs; in the medical equipment sector, it is used for control panels of patient monitors, syringe pumps, rehabilitation equipment, etc., complying with medical cleanliness standards and supporting disinfection and cleaning needs.

No matter which field, Aobo Silicone's products accurately meet core usage requirements: stable conduction without failure, guaranteed pressing life, strong environmental adaptability, and controllable dimensional accuracy, providing a reliable interaction interface for customers' end products.

Customization Solutions

Aobo Silicone provides comprehensive customization services with both OEM and ODM cooperation models available. We can tailor silicone remote control keypads to your specific product requirements, with competitive pricing for bulk orders.

Customizable Items

● Material selection: Ordinary industrial grade, food grade and medical grade silicone available, with hardness adjustable from 20 to 80 Shore A
● Color customization: Any color customizable according to Pantone color code, supporting single-color, two-color and multi-color one-piece molding
● Structure customization: Key layout, stroke, force, shape and size can be designed on demand, with integrated structures such as light guide columns, back adhesive and buckles
● Process customization: Multiple surface processes including silk screen printing, laser engraving, epoxy dispensing, oil spraying and PU coating available, with customizable characters and patterns
● Conduction mode: Multiple conductive solutions including conductive carbon pills, conductive ink, metal domes and gold-plated contacts available

Customization Process

1. Demand Communication: Customers provide drawings, samples or functional requirements, professional engineers communicate 1-on-1 to confirm product specifications, performance requirements and estimated quantity
2. Solution Evaluation: Technical team conducts manufacturability analysis, recommends optimal material and process solutions, and provides detailed quotation and lead time within 24 hours

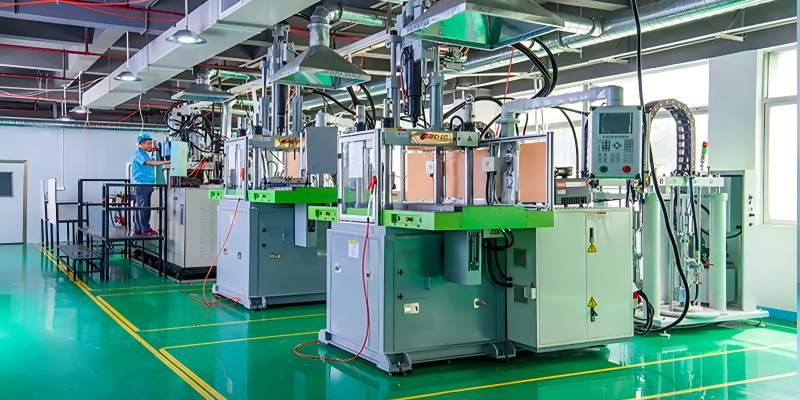

3. Mold Development: After solution confirmation, our in-house mold workshop carries out precision mold design and processing, with mold opening completed in 7-10 days for conventional structures
4. Sample Confirmation: After mold completion, sample testing is conducted, and samples are sent to customers for confirmation of size, tactile feel, conduction performance, etc. Adjustments and optimizations can be made according to feedback
5. Mass Production: Arrange mass production after sample confirmation, with standardized production lines for efficient operation, and conventional orders delivered in 5-8 days
6. Quality Inspection & Delivery: Finished products are packaged and delivered after passing full inspection, with material reports, quality inspection sheets and other documents enclosed, supporting logistics distribution and export customs declaration

ODM Bulk Order Discount Policy: For long-term cooperative customers with annual purchase volume of over 1 million pieces, we provide tiered preferential pricing: the larger the order quantity, the lower the unit price. Meanwhile, we offer mold fee waiver, priority production scheduling, and exclusive account manager for full-process follow-up. For customers with independent design needs, we provide full-process ODM services from product structure design, material formula R&D to manufacturing, helping customers launch differentiated products quickly.

Frequently Asked Questions (FAQs)

Q1: Where is your factory located? Can we visit on site?

A: Aobo Silicone's production base is located in Dongguan, Guangdong, with independent silicone molding workshops, mold rooms and silk screen workshops. Customers are welcome to make an appointment in advance for on-site visits, and we will arrange dedicated staff to receive and explain the production process.

Q2: What is the regular lead time for silicone remote control keypads?

A: For standard products with existing molds, stock items can be shipped within 48 hours; for custom products with new molds, the mold development cycle is 7-10 days, and mass production takes 5-8 days after sample confirmation. The specific lead time can be adjusted according to order quantity and urgent order requirements.

Q3: What is the minimum order quantity? Can we get samples for testing first?

A: The MOQ for conventional standard models is 1000pcs, and for custom models it ranges from 3000 to 5000pcs depending on structural complexity. We provide free samples for testing and confirmation with freight collect; custom mold samples charge a reasonable sample fee, which can be fully deducted from bulk orders.

Q4: How many pressing cycles can the keypad achieve?

A: The standard service life of products made of ordinary silicone material is ≥500,000 cycles, and high-end fumed silicone formula can reach over 5 million cycles. We can recommend suitable materials according to your application scenarios, and provide third-party life test reports upon request.

Q5: Are your products waterproof? What is the protection level?

A: Standard one-piece silicone remote control keypads can reach IP65 dustproof and waterproof level, and special sealing structure design can achieve IP67 level, suitable for daily splashing and humid environment use. For higher protection requirements, we can optimize the structure design accordingly.

Q6: Will the surface characters peel off? What processes are available?

A: We offer multiple processes including silk screen printing, laser engraving and epoxy dispensing. Ordinary silk screen printing meets daily use needs; laser engraved characters are embedded inside the material and will never fade; surface epoxy dispensing or PU coating further improves wear resistance. You can choose the corresponding process according to product positioning and budget.

Q7: Can you issue VAT special invoices? Do you support export?

A: We are a general taxpayer enterprise and can issue 13% VAT special invoices. Our products support export sales, and we can provide a full set of documents and certification materials required for customs declaration to assist customers with customs clearance.

Q8: What should we do if there are quality problems after receiving the goods?

A: We promise all factory products have undergone strict quality inspection. If quality problems are confirmed to be caused by our side, you can contact the account manager to apply for return, replacement or rework, and all related expenses will be borne by us. We provide lifetime technical support, and you can consult us at any time for any problems during product use.
