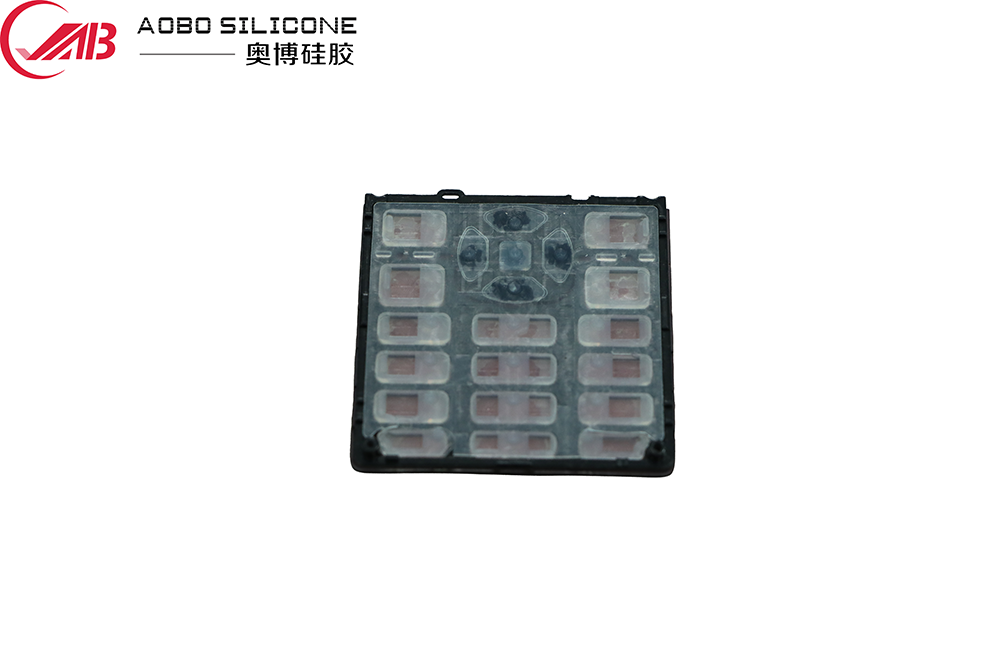

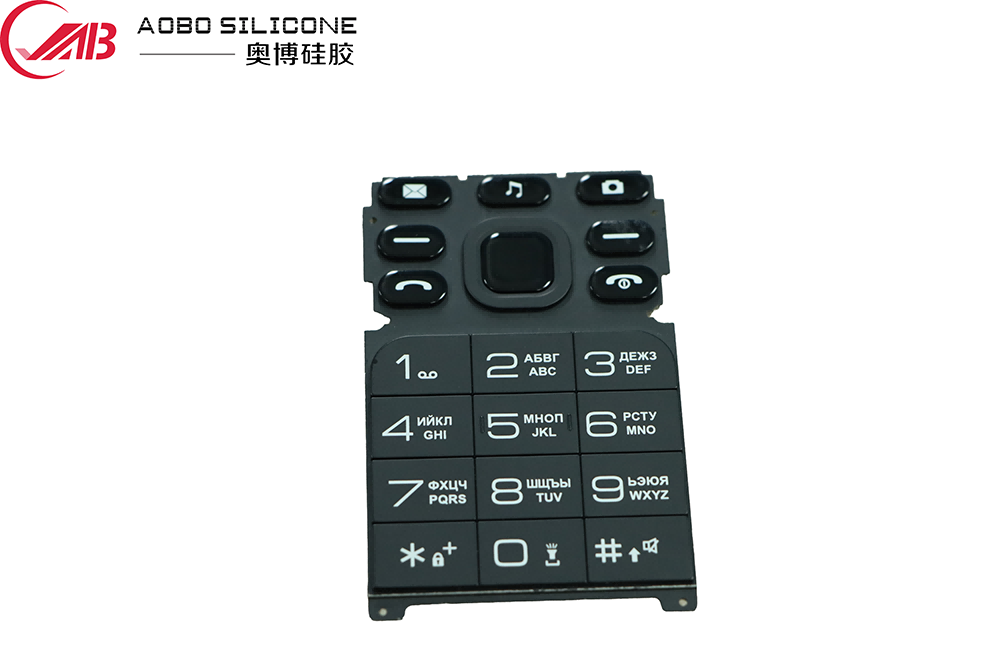

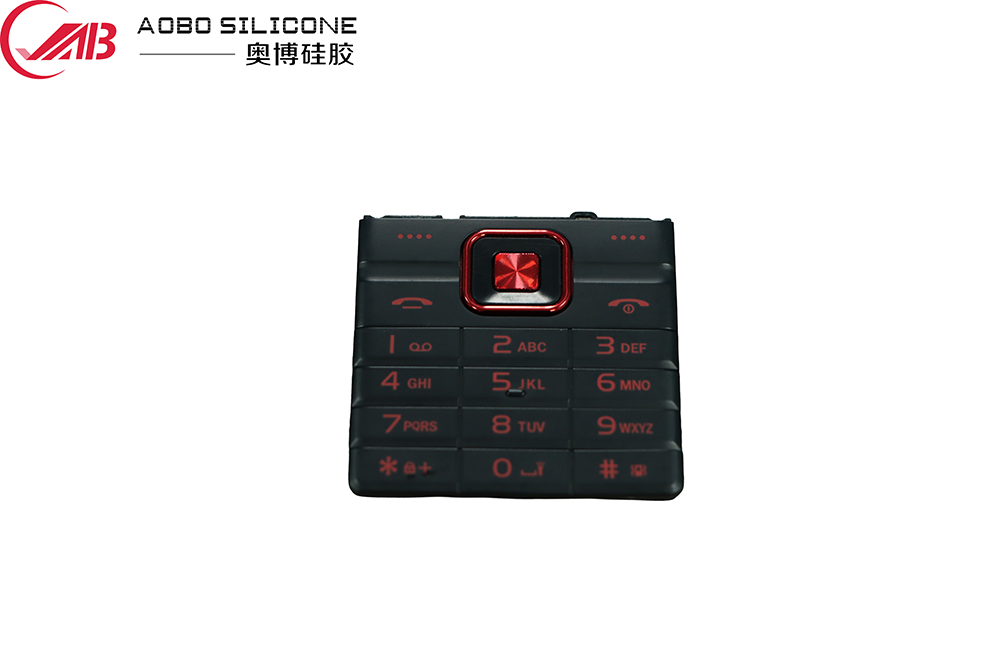

Compression molded silicone keypad

A Compression molded silicone keypad  is an electronic control component integrally formed via compression molding or liquid silicone injection molding, with high-elasticity silicone rubber as the base material. It serves as the core functional part for human-machine interaction on remote controls. The back of each key is integrated with conductive carbon pills or metal contacts: when pressed, the silicone deforms elastically to bring the conductive layer into contact with the PCB board, completing circuit conduction and command transmission; when released, the silicone rebounds rapidly by its own elasticity to break the circuit and return to its original state. Integrating three core functions of conductive triggering, tactile feedback and sealing protection, it is an indispensable component for all remote control devices.

Item	Details
Product Name	Compression molded silicone keypad
Available Specifications	Fully customizable based on customer drawings / physical samples
Protection Rating	IP65 (standard version); IP67 (custom waterproof version)
Base Material	Fumed silicone rubber; industrial grade / food grade / medical grade optional
Available Colors	Full Pantone color matching; single-color, two-color & gradient effects supported
Execution Standards	GB/T 528-2009, SJ/T 10467-1994, ASTM D2000, RoHS & REACH compliant
Compatible Accessories	Conductive carbon pills, stainless steel metal domes; matching design for PCB boards available
Accessory Materials	High-purity graphite carbon particles, 301 stainless steel domes
Packaging Method	Inner PE bag + outer export carton; custom packaging with logo available
MOQ	3,000 pieces for customized orders; small-batch samples available for testing
Production Lead Time	5--7 working days for sampling; 7--10 working days for mass production
Warranty Period	12 months from the date of delivery
Payment Terms	T/T 30% deposit, 70% balance before shipment; L/C acceptable for large bulk orders
FOB Port	Shenzhen / Guangzhou, China
Manufacturer	Aobo Silicone (Dongguan, Guangdong, China)

I. Core Functions

● Circuit Conduction: The back conductive carbon pills align precisely with PCB gold fingers to ensure stable signal transmission
● Tactile Feedback: Moderate actuation force and crisp rebound feel deliver clear operation confirmation
● Sealing Protection: The integrated base structure blocks dust and moisture intrusion to safeguard internal circuits
● Character Identification: Functional symbols printed via silk-screen or laser engraving clearly indicate the operation of each key

Product Advantages

The Compression molded silicone keypad manufactured by Aobo Silicone lead the industry in material formulation, molding precision and service life. Backed by years of technical accumulation, we have developed five core strengths to deliver higher product value for our customers.

1. Ultra-Long Service Life & Outstanding Weather Resistance
● Built with fumed silica-reinforced silicone rubber, the keypad achieves 500,000 to 1,000,000 press cycles, far outperforming ordinary plastic keys
● Wide operating temperature range from -40℃ to 200℃, with rebound attenuation ≤5% under extreme temperature conditions
● Formulated with UV-resistant and hydrolysis-resistant additives, it resists aging and cracking in outdoor environments and extends equipment lifespan

2. Precision Tactile Tuning & Superior Operating Experience
● Actuation force customizable from 60gf to 250gf, key stroke adjustable from 0.3mm to 0.8mm to match different usage habits
● Rapid, crisp rebound without jamming, sinking or hysteresis, with consistent tactility across one million press cycles
● Matte anti-slip surface finish, skin-friendly and hypoallergenic, reducing finger fatigue during prolonged operation

3. Stable Conductivity & Reliable Signal Transmission
● High-purity conductive carbon pills applied to the back, with contact resistance ≤150Ω for sensitive, delay-free conduction
● Strong adhesion of the conductive layer prevents peeling and wear, maintaining 100% signal transmission accuracy over long-term use
● Insulating base material with resistance ≥10¹²Ω eliminates cross-interference between keys and prevents false triggering

4. Integrally Molded Structure for Waterproof & Dustproof Sealing
● One-piece vulcanization molding of the base and keys leaves no splicing gaps, delivering basic IP65 protection
● Customizable waterproof skirt structure achieves IP67-level protection for humid and dusty harsh environments
● Dimensional tolerance of ±0.05mm enables easy alignment and installation, suitable for automated assembly lines

5. Wear-Resistant Legible Characters & Premium Appearance
● High-adhesion ink silk-screen or laser engraving process ensures characters resist friction and alcohol wiping
● Supports multi-color printing, gradient effects and backlight translucency for differentiated appearance needs
● Precise color matching per Pantone color chart with ΔE≤0.5 color difference, ensuring consistent color across batch production

Parameter	Value / Customizable Range	Test Standard / Notes
Base Material & Physical Properties
Base material	Fumed silicone rubber	ASTM D2000 / GB/T 528-2009
Shore hardness	30--80 Shore A (customizable)	ASTM D2240
Tensile strength	≥ 6.5 MPa	ASTM D412
Elongation at break	≥ 300%	ASTM D412
Material density	1.12--1.18 g/cm³	ASTM D792
Electrical Performance
Contact resistance	≤ 150 Ω	SJ/T 10467-1994
Insulation resistance	≥ 10¹² Ω	IEC 60093
Dielectric strength	≥ 20 kV/mm	IEC 60243-1
Dielectric constant	2.8--3.2 @ 1MHz	IEC 60250
Mechanical & Tactile Properties
Press cycle life	500,000 -- 1,000,000 cycles	ASTM D430
Actuation force	60 -- 250 gf (customizable)	Force gauge test
Key stroke	0.3 -- 0.8 mm (customizable)	High-precision caliper
Rebound response time	≤ 10 ms	High-speed camera test
Environmental Reliability
Operating temperature	-40℃ to 200℃	ASTM D1329
Dust & waterproof rating	IP65 (standard) / IP67 (custom)	IEC 60529
UV resistance	No cracking after 500h UVB exposure	ASTM G154
Alcohol wipe resistance	≥ 1,000 wipes (laser engraved)	Rub resistance test
Manufacturing Precision
Dimensional tolerance	± 0.05 mm	ISO 2768-m
Color difference	ΔE ≤ 0.5 (Pantone matching)	Spectrophotometer test
Flatness tolerance	≤ 0.03 mm	Coordinate measuring machine
Conductive pill concentricity	≤ 0.02 mm	Vision measuring system

II. Qualifications & Quality Assurance

Aobo Silicone has established a comprehensive quality management system and quality control workflow, with strict oversight from raw material incoming inspection to finished product shipment, ensuring every batch of Compression molded silicone keypad meets high quality standards. We regard quality as the foundation of our business, and provide customers with reliable quality commitment through standardized production and systematic testing.

1. Quality Management System
● ISO9001:2015 Quality Management System certified, with standardized control over the entire production process
● Four-level quality inspection mechanism (IQC, IPQC, FQC, OQC) with 100% full inspection at critical processes
● Equipped with a professional testing laboratory for reliability verification including life test, temperature resistance test and conductivity test

2. Material Safety Certifications
● All raw materials are RoHS and REACH compliant, halogen-free and free of hazardous substances
● Food-grade and medical-grade silicone options available, meeting FDA, LFGB and other international safety standards
● Full material traceability, with material test reports and MSDS documents available upon request

3. Industry Implementation Standards
● Strictly complies with GB/T 528-2009 standard for tensile properties of vulcanized rubber
● Meets SJ/T 10467-1994 general technical specifications for rubber keys in electronic equipment
● Conductivity, dimensional tolerance, weather resistance and other indicators meet or exceed industry norms

III. Quality Commitment

Aobo Silicone guarantees that all shipped products have passed rigorous inspection. In case of quality issues such as non-conforming materials or substandard performance, we will accept unconditional returns and replacements and bear corresponding losses. Our professional after-sales team responds to customer inquiries within 30 minutes and provides solutions within 24 hours to minimize disruption to your production schedule.

IV. Practical Application Scenarios

As a fundamental interactive component, the Compression molded silicone keypad  is widely used in remote control equipment across all industries, facing varied environmental challenges and performance requirements in different scenarios. Aobo Silicone provides targeted solutions for scenario-specific pain points, ensuring stable and reliable keypad performance even under complex working conditions.

1. Industry Pain Points
● Home Appliance Scenario: Frequent pressing causes character wear and key sinking; oil fume and moisture in kitchens and bathrooms accelerate aging and yellowing of ordinary keypads
● Automotive Scenario: Wide temperature fluctuations and strong UV radiation cause ordinary silicone to crack and harden; vibration leads to accidental key activation
● Industrial Control Scenario: Heavy dust, oil and mud accumulate in key gaps and cause jamming; high-frequency operation shortens service life
● Medical Equipment Scenario: Frequent alcohol disinfection causes ordinary ink to peel off; strict requirements for material biocompatibility

2. Targeted Solutions
● Home Appliance Solution: Wear-resistant coating + oil-repellent formulation with PU protective layer on characters for enhanced oil and sweat resistance; optimized rebound structure delivers over 8 years of service life in daily household use
● Automotive Solution: UV-stabilized weather-resistant formulation for stable performance across -40℃ to 85℃; reinforced positioning ribs prevent shaking and false triggering under bumpy road conditions
● Industrial Control Solution: Fully enclosed integrated structure with IP67 dust and water protection to isolate dust and mud; high-hardness wear-resistant silicone for high-frequency, heavy-duty operation
● Medical Solution: Medical-grade silicone base material with excellent biocompatibility; laser-engraved ink-filled characters resist repeated alcohol wiping without peeling

V. Applicable Industries

With outstanding comprehensive performance, the Compression molded silicone keypad has been widely adopted across multiple sectors and become a standard configuration for various remote control devices. Aobo Silicone focuses on vertical industry demands, optimizes product design for different application characteristics, and precisely fulfills core requirements in each field.

VI. Core Application Fields

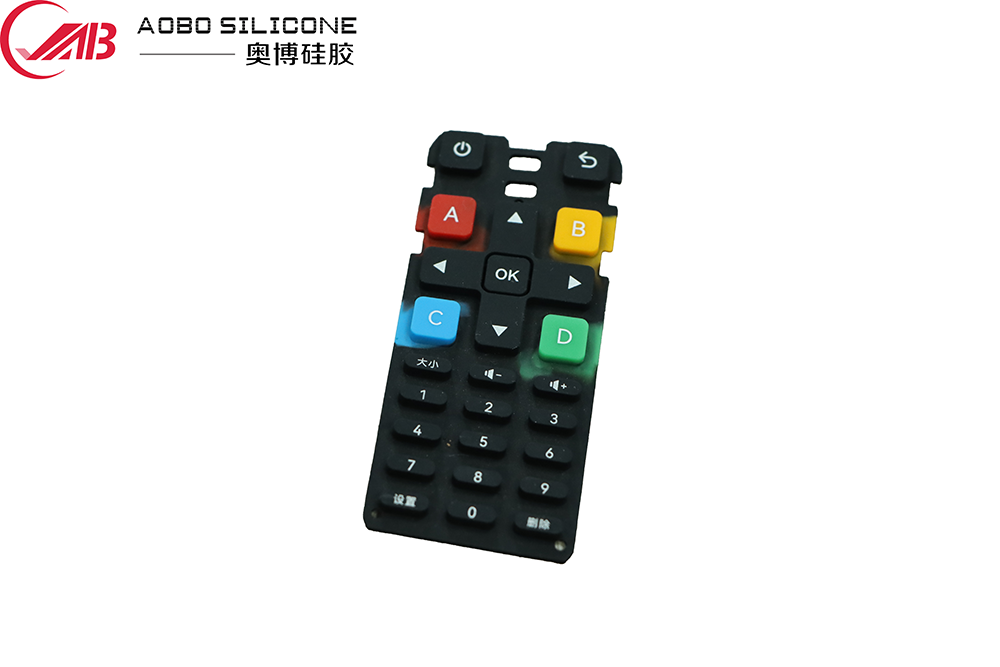

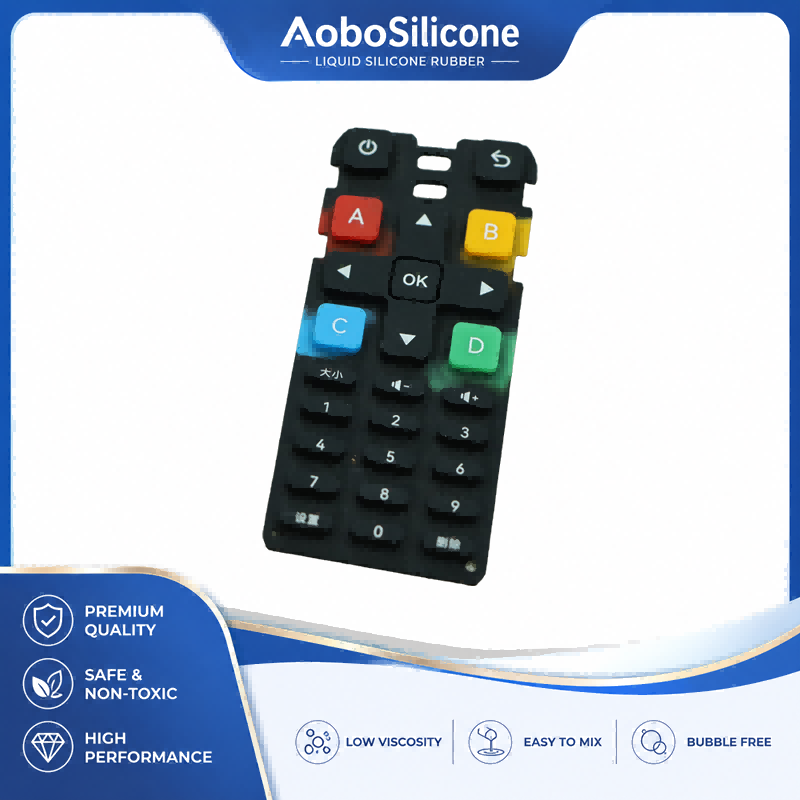

● Consumer Electronics: TV remotes, set-top box remotes, air conditioner remotes, projector remotes and other home appliances
● Automotive Electronics: Car key keypads, in-car multimedia remotes, dash cam controllers, car seat adjustment buttons

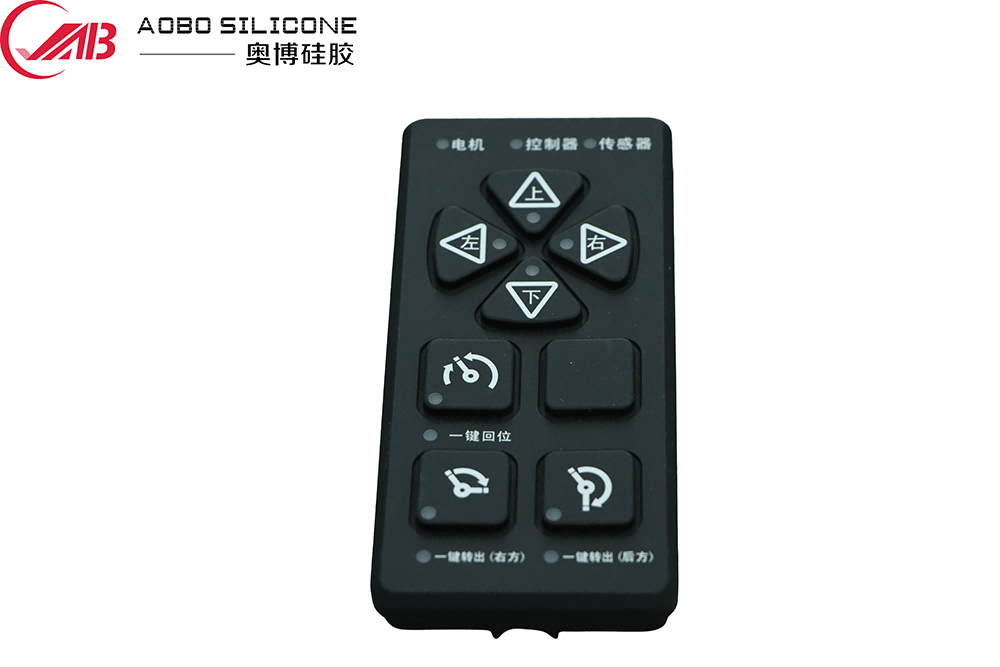

● Industrial Control: Crane remotes, overhead crane remotes, machine tool control panels, automation equipment operation terminals
● Medical Equipment: Monitor keypads, therapy device controllers, rehabilitation equipment remotes, medical testing instrument panels
● Smart Home: Smart lock keypads, curtain controllers, lighting remotes, security system remotes

VII. Core Requirement Fulfillment

Addressing both common and differentiated needs across industries, Aobo Silicone products fully cover core usage requirements: basic models deliver standard press life and conductivity; advanced models offer enhanced waterproof/dustproof performance and weather resistance; high-end custom models integrate special features such as backlight guiding, multi-color molding and graded actuation force. Whether you seek cost-effective mass supply or high-end custom solutions with special performance requirements, we can provide a matching product solution.

VIII. Customization Solutions

Aobo Silicone offers full-dimensional customization services to tailor exclusive Compression molded silicone keypad based on your product structure, functional requirements and appearance design. From drawing evaluation to mold sampling and mass production, dedicated personnel oversee the entire process to ensure customized products precisely match your needs.

Customizable Items
● Material: Industrial-grade, food-grade or medical-grade silicone options, Shore A hardness adjustable from 30A to 80A
● Color: Full Pantone color matching available, supporting single-color, two-color and multi-color gradient effects
● Structure: Customizable key count, layout, stroke height and actuation force
● Process: Combinations of silk-screen printing, laser engraving, dispensing, coating, conductive carbon pills, metal domes and more
● Function: Custom specifications for waterproof rating, backlight translucency, anti-static, flame retardancy and other special features

Customization Process
1. Demand Communication: You provide drawings/samples and specific requirements; we evaluate feasibility and provide a quotation
2. Solution Confirmation: Our engineers present design proposals and material recommendations; both parties confirm technical parameters
3. Mold Development: Mold manufacturing starts after order confirmation, typically taking 5--7 working days
4. Sample Prototyping: Samples are produced and tested after mold completion, then shipped for your verification of tactility, dimensions and appearance
5. Mass Production: Production is scheduled upon sample approval, with a standard lead time of 7--10 days
6. Inspection & Delivery: Finished products pass full inspection before packaging and shipment, accompanied by corresponding test reports

ODM Volume Discount Policy
For ODM partners with annual purchase volume of 1 million pieces or more, Aobo Silicone offers tiered pricing -- the larger the order volume, the lower the unit price. Long-term partners enjoy exclusive benefits including waived mold fees, priority production scheduling and flexible payment terms. We also assign dedicated account managers and technical teams to provide full technical support from product design to mass production, achieving mutual benefit and shared growth.

IX. Frequently Asked Questions (FAQ)

Q1: Are you a factory or a trading company? What is your MOQ?
Aobo Silicone is a professional silicone product manufacturer with our own factory in Dongguan, Guangdong, equipped with an in-house mold workshop and production lines. The standard MOQ for customized products is 3,000 pieces. Small quantities of stock samples are available for testing; please contact our sales representative for details.

Q2: How long does sampling take? Is there a sample charge?
Sampling for new molds generally takes 5--7 working days; samples from existing molds can be shipped within 2--3 days. For first-time cooperation, we provide 3--5 free samples with freight collect. Special customized samples may incur a sampling fee, which will be deducted from your bulk order payment.

Q3: What is the service life of a Compression molded silicone keypad?
Standard consumer-grade keypads have a press life of ≥500,000 cycles, while industrial-grade models can exceed 1,000,000 cycles. Under normal household daily use, the service life reaches 5--8 years; in high-frequency industrial scenarios, it is approximately 2--3 years, varying with usage frequency and environmental conditions.

Q4: Can you produce waterproof keypads? What is the highest protection rating?
Yes, we offer waterproof structure customization. Basic integrated keypads achieve IP65 dust and water protection; with an added waterproof skirt and sealing structure, the rating can reach IP67, suitable for short-term immersion and high-pressure spray environments.

Q5: Will the surface characters peel off? What character processes are available?
We use high-adhesion wear-resistant ink or laser engraving technology, so characters will not easily peel off under normal use. Available processes include standard silk-screen printing, wear-resistant coating, laser engraving with ink filling, and dispensing raised characters. Laser engraving offers the best alcohol wipe resistance, ideal for medical and industrial applications.

Q6: Do your products have environmental certifications? Are they compliant for export to Europe and the US?
All products are RoHS and REACH compliant, halogen-free and phthalate-free, meeting EU and US import standards. Complete test reports and material certificates are available to support smooth customs clearance.

Q7: What should I do if quality issues are found after receiving the goods?
If there are quality defects such as non-conforming materials, dimensional deviation or performance failure, please contact our after-sales team immediately. Upon confirmation that the issue is our responsibility, we will accept unconditional returns and replacements and cover the round-trip freight to fully protect your rights and interests.

Q8: Can you design the keypad based on our PCB board? What documents do we need to provide?
Yes, we support reverse keypad structure design based on your PCB board dimensions and contact positions. Simply provide PCB drawings or physical samples, along with requirements for key layout and actuation force, and our engineers will complete the matching design.
